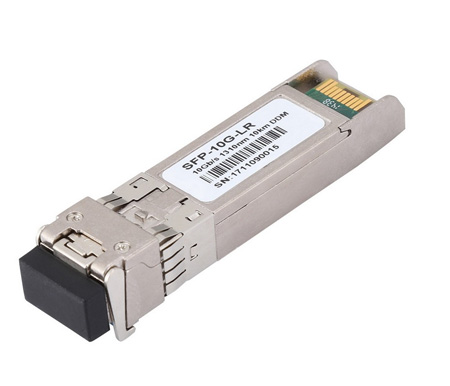

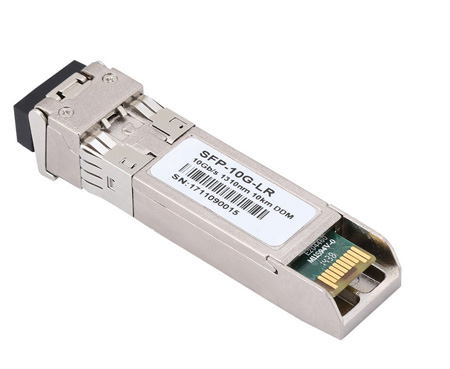

1. The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 10Gbps and 10km transmission distance with SMF.
2. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class | laser safety requirements.
3. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Application
1. Gigabit Ethernet。
2. Fiber Channel
3. Switch to Switch interface
4. Switched backplane applications
5. Router/Server interface
6. Other optical transmission systems
Features
1. Dual data-rate of 10Gbps operation
2. 1310nm FP laser and PIN photo detector for 20km transmission
3. Compliant with SFP MSA and SFF-8472 with Dual data-rate of 10Gbps operation the duplex LC receptacle
4. Digital Diagnostic Monitoring: Internal Calibration or External Calibration
5. Compatible with SONET OC-24-LR-1
6. Compatible with RoHS
7. +3.3V single power supply
8. Operating case temperature: Standard:oto+70°C Industrial: -40 to +85°C
