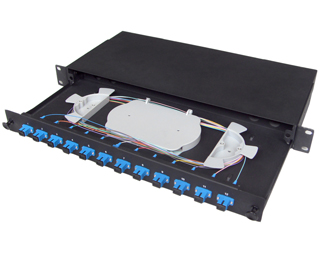

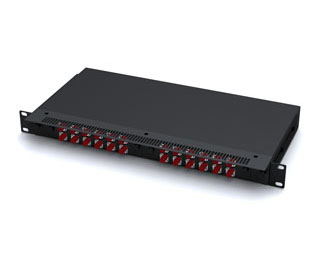

The case is made of cold rolled steel sheet.
Electrostatic spraying, provide capacity up to 24(1U)/48(2U).
Port fiber available for ST. SC, FC, LC & E2000.
Features
1. 1U design – space saving 19” rack installation.
2. Cable grand to provide maximum cable retention.
3. Cable guards to ensure good routing for incoming fiber.
4. Up to 48 adaptor port (depend on adaptor type).
5. Splice trays are allowed to install.
6. Interchangeable front panel to allow maximum flexibility of adaptor choice
Application
1. Installed inside equipment rack.
2. Backbone fiber termination & distribution.
3. Main distribution frame. (MDF)
4. Local area network. (LAN)
5. Wide area network. (WAN)
6. Close circuit television. (CCTV)
7. Data center.
Specification
Material | Mild steel |
Color | Black power epoxy |
Weight | 3.1kg |
Adaptor capacity | 48 |
Splice tray capacity | 3 |
Operation temperature | -25℃ - + 40℃ |
Storage temperature | -25℃ - + 55℃ |
Dimension (LXWXH) | 483x206x44mm |
