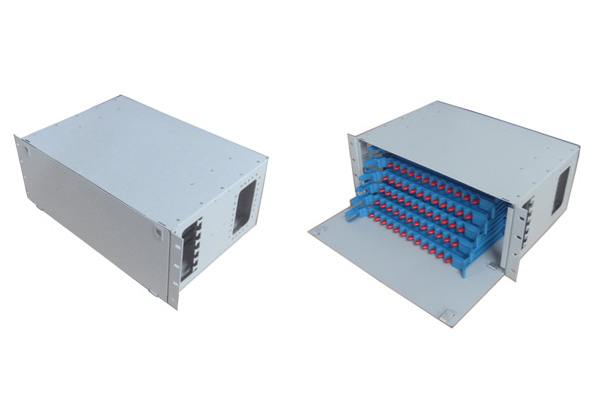

The case is made of cold rolled steel sheet.
Electrostatic spraying, provide capacity up to 96/192
Port fiber available for ST. SC, FC, LC & E2000.
Features
1. 3U, 4U & 6U design – space saving 19” rack installation.
2. Cable grand to provide maximum cable retention.
3. Cable guards to ensure good routing for incoming fiber.
4. Up to 192 adaptor port (depend on adaptor type).
5. Splice trays are allowed to install.
6. Interchangeable front panel to allow maximum flexibility of adaptor choice
Application
1. Installed inside equipment rack.
2. Backbone fiber termination & distribution.
3. Main distribution frame. (MDF)
4. Local area network. (LAN)
5. Wide area network. (WAN)
6. Close circuit television. (CCTV)
7. Data center.
8. Optical distribution frame (ODF) for FTTH system.
Specification
Material | Mild steel |
Color | Beige power epoxy |
Weight | 4.3kg (3I) 5.0kg (4U) 7.8kg (6U) |
Adaptor capacity | 96/192 |
Splice tray capacity | 4 (3U 6 (4U) 8 (6U) |
Operation temperature | -25℃ - + 40℃ |
Storage temperature | -25℃ - + 55℃ |
Dimension (LXWXH) | 483x300x132mm (3U) 483x300x176mm (4U) 483x300x205mm (6U) |
