The adapter panel provides fast and efficient port management for MTP/MPO or LC/SC connectors.
It is applicable for next-generation high-density data center solutions. The panel reaches the connection and deployment of the patch cords and pigtails between the devices and patch panels.
The panel is used with the field mounting connectors, or with the pre-terminated cables device to the interconnect hardware.
Features

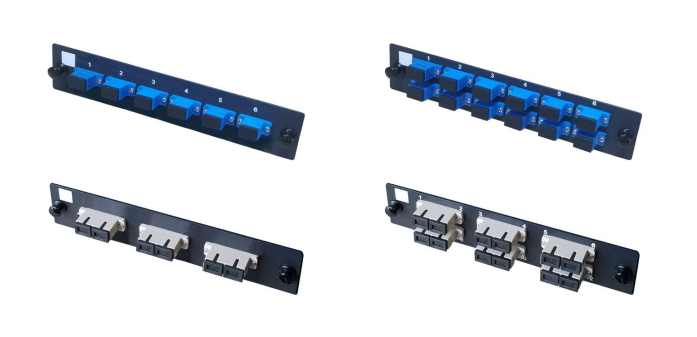

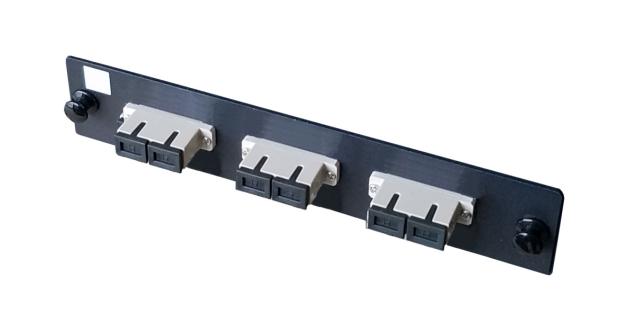

1. High-density ports, single adapter panel Configurable with 24 IP adapter ports or 6 SC adapter ports or 6 MPO/ MTP adapter ports.
2. High-quality cold-rolled steel, compliant with European ROHS standards.
3. Clear connector coding mark.
4. Flexible structure, adapter port configuration can be
5. flexibly selected
Specification
Type | Module IL (Max) | |
MM | Standard | 1.0dB |
Low Loss | 0.7dB | |
Ultra-low-loss | 0.35dB | |
SM | Standard | 1.0dB |
Low Loss | 0.7dB | |
Ultra-low-loss | 0.5dB | |
