1. Loose tubes (or some fillers) stranded around the metal central strength member.
2. Bound by corrugated longitudinal steel tape with outer PE jacket.
3. The tube is made of good temperature property material. A number of single or multi-mode fiber double-coated are contained in the loose tube.
Applications:
Outdoor communication, Long distance and local Area Network(LAN) communication.
Feature:
1. Accurate fiber excess length ensures good performance under mechanical stress and good temperature performance.
2. The central strength member make use of high phosphatized steel wire.
3. Tubes, cable core and all interstices are fillings moisture-proof and water blocking compound to ensure no longitudinal water ingress.
4. Longitudinal corrugated steel tape lamination at both sides bonding to PE sheath ensure not only radial moisture-proof but also reinforces the crush resistance.
5. High density polyethylene PE jacket possesses good ultra violet radiation resistant property.
Temperature range: -40 ~ 70℃
Fiber count: 2- 144
Outer Diameter: 9.0±0.3mm
Package: Packed with raw wood reel
Delivery length: 2000M + 1- 2% tolerance
Fiber optic cable parameter
Cable | Fiber Count | Tube | Fillers | Cable Diameter | Cable Weight |
GYTS （2-12） | 2-12 | 1 | 4 | 10.2 | 116 |
GYTS （14-24） | 14-24 | 2 | 3 | 10.2 | 116 |
GYTS （26-36） | 24-36 | 3 | 2 | 10.2 | 116 |
GYTS （38-48） | 38-48 | 4 | 1 | 10.2 | 116 |
GYTS （50-60） | 50-60 | 5 | 0 | 11.2 | 141 |
GYTS （62-72） | 62-72 | 6 | 0 | 12.0 | 159 |
GYTS （74-84） | 74-84 | 7 | 1 | 13.6 | 209 |
GYTS （86-96） | 86-96 | 8 | 0 | 13.6 | 209 |
GYTS （98-108） | 98-108 | 9 | 1 | 15.4 | 232 |
GYTS （110-120） | 110-120 | 10 | 0 | 15.4 | 232 |
GYTS （122-132） | 122-132 | 11 | 1 | 17.2 | 280 |
GYTS （134-144） | 134-144 | 12 | 0 | 17.2 | 280 |
Tensile Strength Long/Short Term N | 600/1500 | ||||
Crush Resistance Long/Short Term N/100mm | 300/1000 | ||||
Bending Radius Static /Dynamic mm | 10D/20D | ||||

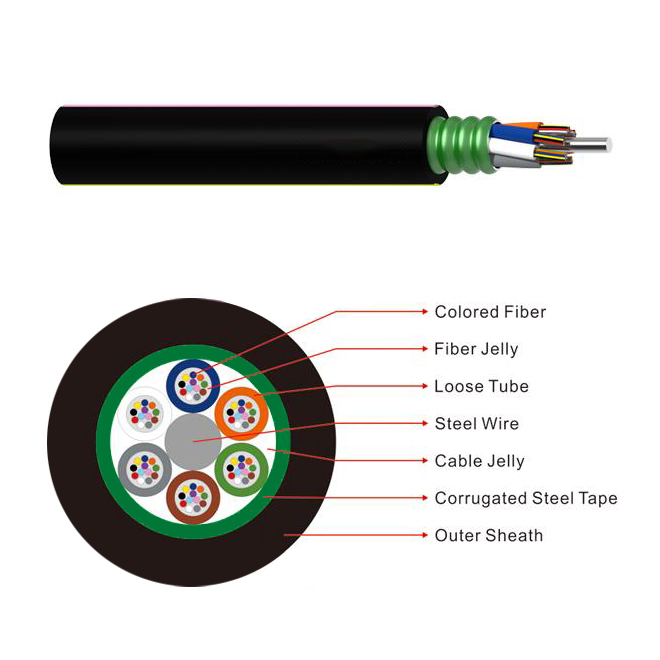

Cable construction:
