1. The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member.
2. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
3. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.
Applications:
Long distance and local Area Network(LAN) communication.
Feature:
1. Central loose tubes with jelly compound inside to protect the cladding fiber.
2. Corrugated steel tape laminated with plastic at both side bonding to PE sheath.
3. The cross section in fig8 shape.
4. Incorporates stranded steel messenger wire.
Temperature range: -40 ~ 70℃
Properities: Messenger wire as self-supporting part, high tensile strength, easy for erection.
Outer Diameter:10.5 ± 0.3mm x 17.8mm ± 0.3mm
Package: Packed with raw wood reel
Delivery length: 2000M + 1- 2% tolerance
Fiber optic cable parameter
Cable | Fiber Count | Tube | Fillers | Cable Diameter | Cable Weight |
GYTC8S(2-12) | 2-12 | 1 | 4 | 10.5x17.8 | 218 |
GYTC8S(14-24) | 14-24 | 2 | 3 | 10.5x17.8 | 218 |
GYTC8S(26-36) | 26-36 | 3 | 2 | 10.5x17.8 | 218 |
Bending Radius (mm) Dynamic/Static | 20H/10H | ||||
Tension (N) Short-term/Long-term | 4800/2500 | ||||
Crushing Resistance (N/100mm2) | 1000 | ||||

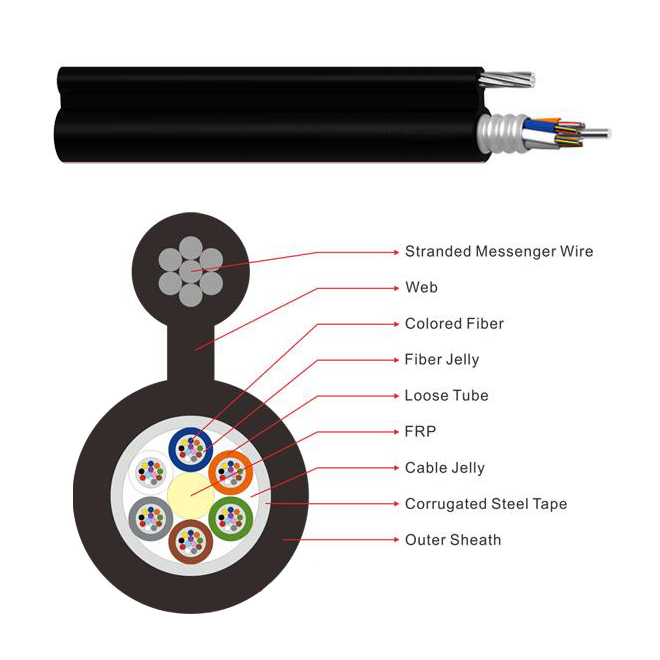

Cable construction:
