Loose tubes (or some with fillers) stranded around the central strength member to form the cable core, the cable core longitudinally bound by aluminum polyethylene laminate, further bonded to the PE inner jacket. Moisture barrier and then corrugated steel tape: laminated with polyethylene on both sides, the PE outer jacket consisted of medium density polyethylene extruded under vacuum condition.
Applications:
Outdoor communication, Long distance and local Area Network(LAN) communication.
Feature:
1. High tensile strength, good performance on mechanical stress, crush resistance, temperature and transmission.
2. High modulus phosphatized steel wire as central strength member, PE buffer extruded to outsides of steel wire when necessary.
3. The loose tubes, cable core and all interstices filled with moisture-proof gel and compound, prevent water ingress longitudinally.
4. The aluminum tape laminated on both sides with polyethylene and closely bounded to PE inner sheath possesses the function of radial moisture-proof for the cable.
5. Armoured with longitudinal corrugated steel tape laminated with polyethylene.
6. The longitudinal water blocking tape at the inner side of the steel tape tightly bonded to the MDPE sheath ensure radial moisture-proof and reinforces mechanical crush resistance as well as prevents water ingress longitudinally.
Temperature range:-40 ~ 70℃
Fiber count:2- 144
Outer Diameter:11.4 – 18.0mm
Package:Packed with raw wood reel
Delivery length:2000M + 1- 2% tolerance
Fiber optic cable parameter
Cable | Fiber Count | Tube | Fillers | Cable Diameter | Cable Weight |
GYTA53 (2-12) | 2-12 | 2 | 4 | 14.5 | 209 |
GYTA53 (14-24) | 14-24 | 4 | 2 | 14.5 | 209 |
GYTA53 (26-36) | 26-36 | 3 | 3 | 14.5 | 209 |
GYTA53 (38-48) | 38-48 | 4 | 2 | 15.4 | 234 |
GYTA53 (50-60) | 50-60 | 5 | 1 | 15.4 | 234 |
GYTA53 (62-72) | 62-72 | 6 | 0 | 15.4 | 234 |
GYTA53 (74-84) | 74-84 | 7 | 1 | 18.0 | 297 |
GYTA53 (86-96) | 86-96 | 8 | 0 | 18.0 | 297 |
GYTA53 (98-108) | 98-108 | 9 | 1 | 19.4 | 338 |
GYTA53 (110-120) | 110-120 | 10 | 0 | 19.4 | 338 |
GYTA53 (122-132) | 122-132 | 11 | 1 | 21.3 | 392 |
GYTA53 (134-144) | 134-144 | 12 | 0 | 21.3 | 392 |
Tensile Strength Long/Short Term N | 1000/3000 | ||||
Crush Resistance Long/Short Term N/100mm | 1000/3000 | ||||
Bending Radius Static /Dynamic mm | 10D/20D | ||||

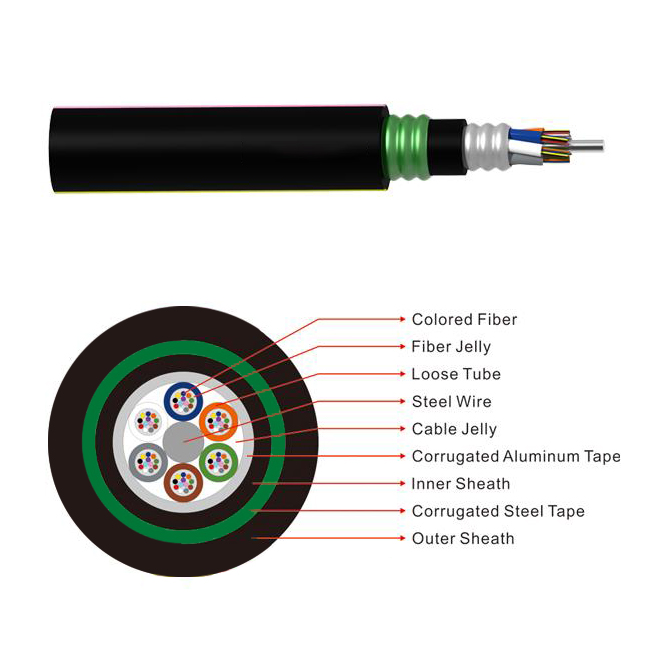

Cable construction:
