1. The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
2. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight.
3. Two parallel steel wires are placed at the two sides of the steel tape
4. The cable is completed with a polyethylene (PE) sheath.
Applications:
Long distance and local Area Network(LAN) communication.
Feature:
1. The two parallel round steel wires enhance tensile strength, tension-resistance and crush resistance.
2. Good mechanical performance, jacket with good ultra violet property.
3. Small outer dismeter, lightweight, tight structure, excellent bending property and suitable to installation and operation.
Temperature range:-40 ~ 70℃
Outer Diameter:8.4 ±0.1mm
Package:Packed with raw wood reel
Delivery length:2000M + 1- 2% tolerance
Fiber optic cable parameter
Fiber Count | 2,4,6,8 | 10,12 | |
Nominal Weight (kg/km) | 66 | 82 | |
Max. tensile Strength (N) | Short-Term | 1500 | |
Long-Term | 600 | ||
Min. Bending Radisu | Dynamic | 20D | |
Static | 10D | ||
Max. Crush Resistance (N/1000mm2) | 3000 | ||

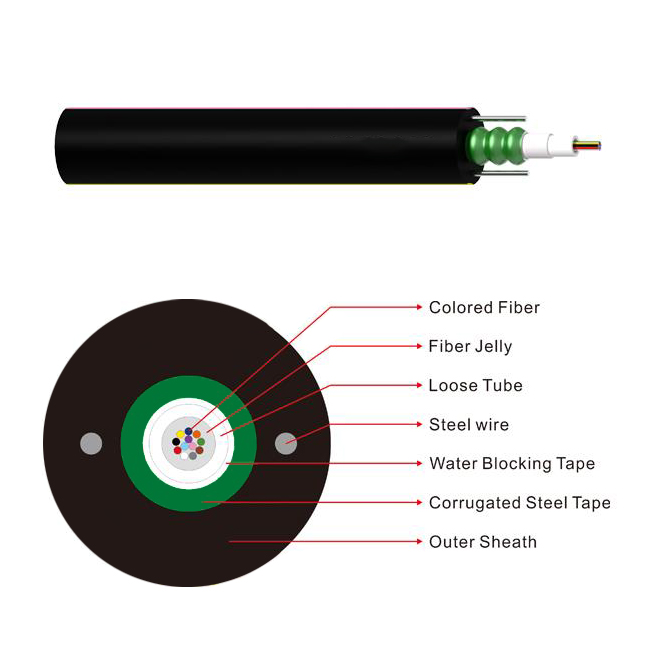

Cable construction:
