GJFJBJ indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm tight buffer fibers and then is completed with LSZH jacket.
Applications:
1. As building to building connecting cable.
2. As indoor soft cable along the wall, ceiling, between layers and in conduits.
3. As pigtails, movable connectors and patchcords for communication equipment.
Feature:
1. High strength aramid yarn strength member ensures high tensile strength and long term stable transmission for optical fibers.
2. Small outer diameter, lightweight, flame-retardant, easy to strip, low attenuation, physically soft.
3. Direct splicing between tight buffered cables without the need of tie-in box or pigtail, suitable for installation, operation and convenient for maintenance.
4. Suitable for installation, operation and convenient for maintence.
Temperature range:-40 ~ 70℃ (LSZH)
Outer Diameter:2.0*4.1(2.0mm) 2.8*5.7(3.0mm)
Technology parameter
Fiber Count | 1 | ||
Outer Diameter(mm) | 2.0 | 3.0 | |
Nominal Weight (kg/km) | 3.5 | 6.8 | |
Max. Tessile Strength (N) | Short-term | 100 | 150 |
Long-term | 60 | 80 | |
Min. Bending Radius (mm) | Dynamic | 20D | |
Static | 10D | ||
Max. Crush Resistance (N/100mm2) | 500 | ||

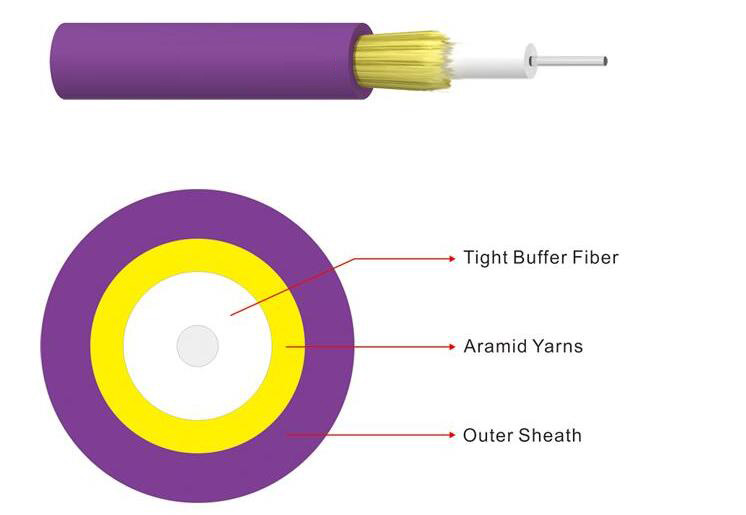

Cable construction:
