GJPFJH indoor fiber optic cable is divided into 24 unit cable. Each unit has its own jacket and aramid yarn as round strength member. The unit cables were SZ stranded around the central strength member.
Applications:
1. For indoor horizontal and vertical cabling.
2. As pigtails. Movable connectors and patchcords for communication equipment.
Feature:
1. Large fiber count small out diameter.
2. Each individual unit cable consists of 12 fibers and has its own aramid yarn as strength member, high strength, good bending property, without gel inside, convenient for splicing and cabling.
3. Fiber count is 12- 288 cores.
4. Color of out jacket varies according to the type of fiber inside, can also be other color upon request.
5. LSZH material for out jacket, can also other material upon request.
Temperature range:-40 ~ 70℃ (LSZH)
Technology parameter
Fiber Count | 12 | 24 | 48 | 72 | 96 | 144 |
Outer Diameter (D*H)mm | 3.0±0.2 | 9.0±0.2 | 9.0±0.2 | 11.2±0.2 | 13.5±0.2 | 17.5±0.5 |
Norminal weight (kg/km) | 7.8 | 31 | 72 | 126 | 176 | 285 |
Tensile Strength Long/Short Term N | 1000/300 | |||||
Bending Radius Static /Dynamic mm | 30D/15D | |||||
Max Crush Resistance (N/1000mm2) | 1000/300 | |||||

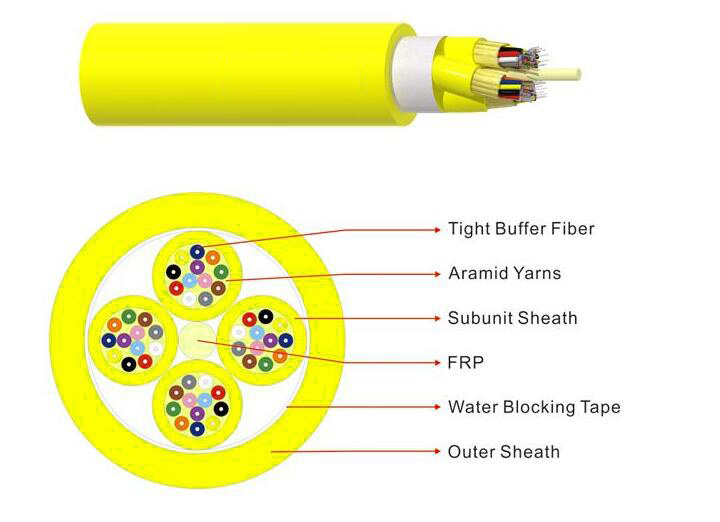

Cable construction:
