GJFJH indoor fiber optic cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm tight buffer fibers and then is completed with LSZH jacket.
Applications:
1. Most suitable for quickly cable distribution and mission-critical environment.
2. Commonly used indoor communication solutions, such as live broadcasting radar detection and communication among branches of army.
Feature:
1. Great mechanical strength and light weight.
2. Simple structure, very suitable for repeatable cable distribution and collection.
3. Good performance in execrable environment.
4. Highly resistant to mechanical and environmental impact with diminished fiber attenuation.
5. Resistance to oil, chemicals, low temperature, crush and abrasion by using strong and flexible LSZH jacket.
6. Fiber count is 2-48 cores, other numbers available upon request.
7. Black color is recommended for jacket, other color available upon request.
Temperature range: -40 ~ 70℃ (LSZH)
Technology parameter
Fiber Count | 4 | 6 | 8 | 10 | 12 |
Outer Diameter (D*H)mm | 4.8±0.2 | 5.2±0.2 | 6.2±0.2 | 6.5±0.2 | 6.8±0.2 |
Norminal weight (kg/km) | 21 | 26 | 35 | 38 | 43 |
Tensile Strength Long/Short Term N | 100/500 | ||||
Bending Radius Static /Dynamic mm | 10D/20D | ||||
Max Crush Resistance (N/1000mm2) | 1000 | ||||

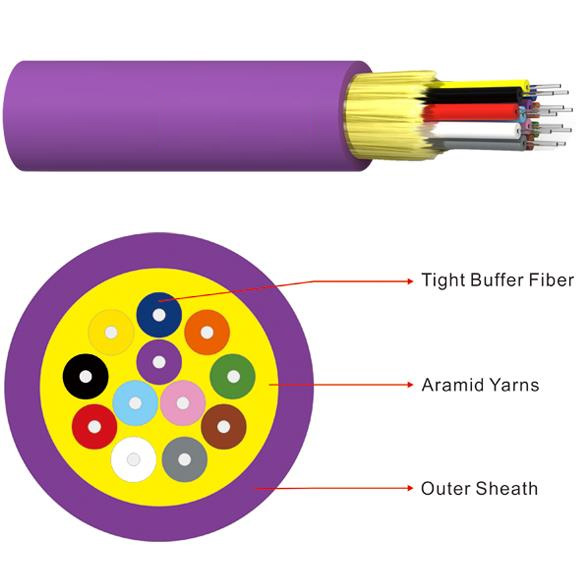

Cable construction:
