GJXFH structure is 1-12 colored fibers combined with two FRP which can protect the fiber inside by providing sufficient tensile strength and good resistance to lateral crushing.
Applications:
1. As FTTH cable, for indoor horizontal and vertical cabling.
2. Indoor cabling under carpet and along corner.
Feature:
1. Simple and convenient structure, convenient for indoor cabling.
2. Good design for lateral crushing resistance.
3. Fiber count is 1-12 cores can be other fiber count upon request.
4. White color for indoor use, can also be other color upon request.
5. LSZH material for out jacket, can also other material upon request.
Temperature range:-20 ~ 70℃ (LSZH)
Technology parameter
Fiber Count | Outer diameter±0.2 | Norminal weight (kg/km) | Min. Bending Radius (mm) | |
Dynamic | Static | |||
1 | 3.1*1.9 | 9 | 20H | 10H |
2 | 3.1*1.9 | 9 | 20H | 10H |

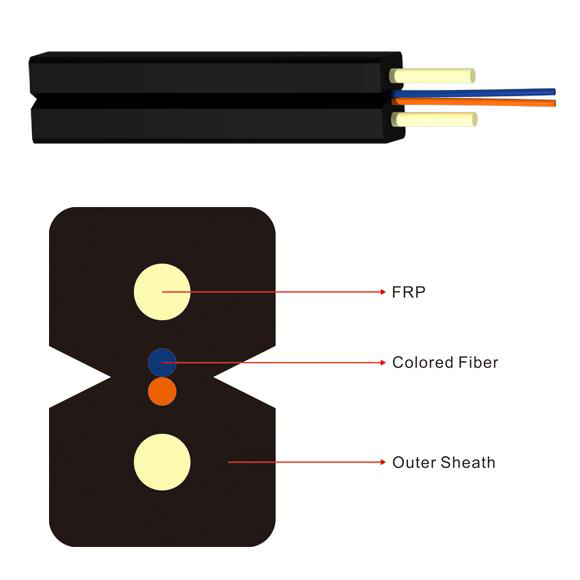

Cable construction:
