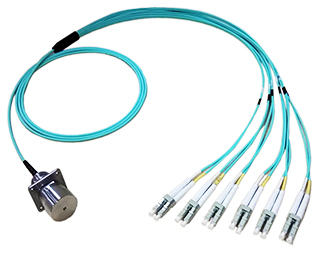

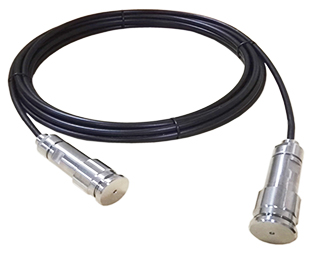

outdoor prefabricated optical fiber connector, Adopt stainless steel SUS316 material production, Surface passivation. With strong rust resistance, corrosion resistance and excellent mechanical properties，Can be used in severe conditions. The connector is composed of a female head (movable plug) and a male head (fixed socket), Mechanical screw locking device to ensure long-term safe and reliable connection. Design oriented positioning bolt, One hand blind insertion can be used to simply and quickly complete the connection installation. The rear design has a crimping device, The connector has excellent resistance to pulling and pulling. Design of tightness，It has waterproof and dustproof features, Product protection level can reach Ip67.
Application
1. Far distance communication base station、FTTA（Fiber to tower）.
2. Intelligent substation control system.
3. Space aviation communication system.
4. Military field communication.
5. Railway, mine and oilfield communication system.
6. Shipboard surveillance, control and communication system.
7. Industrial applications and military applications.
Features
1. Adopt stainless steel SUS316 material production, Corrosion resistant, Themechanical performance is good.
2. Mechanical screw locking mechanism can ensure long-term reliable connection.
3. No welding, plug and play, convenient and quick.
4. Seal design, dustproof, waterproof, protection level can reach Ip67.
5. Male head perforation seal design，The male connector is fixed on the equipment by the screw.
6. The design of a guiding positioning pin，One hand blind insertion can be used to simply and quickly
complete the connection installation.
7. Interface up to 24 cores，The number of cores can be selected according to the requirements.
8. Male head jumper, B end of the common connection type, LC, SC, FC, ST, can be made according to the use of requirements.
