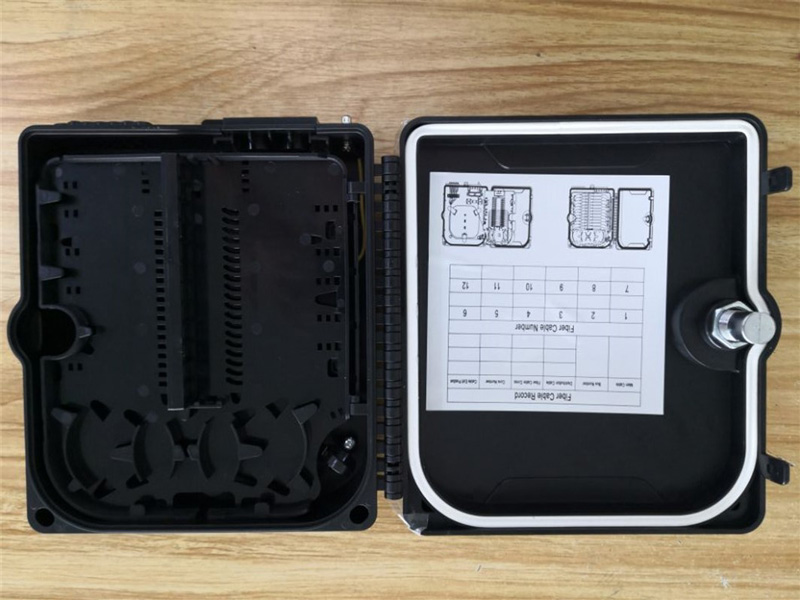

The equipment is used a termination point for the feeder cable to connect with drop cable in FTTX communication network system. The fiber splicing, splitting distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTX network building.
Model: SWYF003-12Port
Features
1. Fully closed structure, simple and beautiful shape
2. Adopted high quality PC and ABS material, with a good property of dustproof, waterproof, moisture proof, achieved IP 54 Grade
3. Suitable for SC and LC duplex adapter

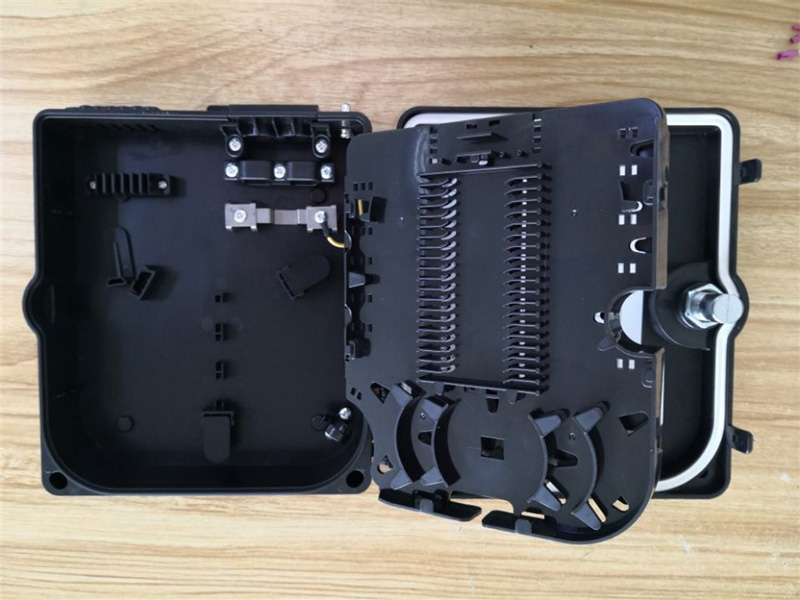

4. Flexible splice tray which is convenient for operation and maintaining.
5. Application: Wall and pole mountable(accessories optional), suitable for indoor and outdoor use.
6. Cabinet can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
Specification
Working temperature：-40℃ ~ +85℃
Storage temperature：-25℃ ~ +40℃
Relative humidity：≤85% (+30℃)
Atmospheric pressure：70 ~ 106 kpa
