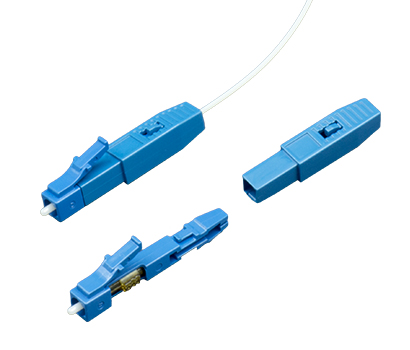

Field Installable Connector (FIC) is a perfect solution for field working and FTTH connection. It is widely used for where need to quick connection, providing a quickly assembling and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate, they can use it easily because it has no epoxy, no polishing. FIC is designed inside ferrule with fiber stuff and pre-polishing in the factory. It provides a perfect ferrule end face quality. This has great help to protect user’s equipment interface and reduce the connector loss.
Features
1. Patent fiber alignment technology.
2. High performance, high reliability.
3. No Polishing, no electricity needed
4. Quick installation, easy for operation.
5. High one-time assembly success rate.
Application
1. For 0.9mm indoor Cable field termination.
2. For emergency fiber path repair.
3. FTTH, LAN and other fiber optic system
4. LC type available
Specification
Item | Parameter |
Applicable for | Indoor cable 0.9MM |
Optical fiber diameter | 125μm ( 657A1 & 657A2 ) |
Tight buffer diameter | 250μm |
Fiber mode | Single mode |
Operation time | < 100s |
Return loss | >-45dB |
Fastening strength of naked fiber | >4 N |
Fastening strength of naked fiber holder | >8 N |
Tensile strength | >10 N |
Using temperature | -40~+75℃ |
On-line tensile strength (20 N) | △ IL ≤ 0.5dB △ RL ≤ 5dB |
Mechanical durability (500 times) | △ IL ≤ 0.5dB △ RL ≤ 5dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | △ IL ≤ 0.5dB △ RL ≤ 5dB |
