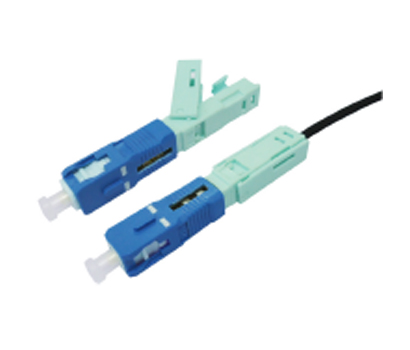

FTTH Drop Cable FIC Connector (Field Installable Connector) is specially for single fiber FTTH drop cable filed termination. It provides efficient assembly and high reliability connection to make it easy for the last meters optic cable termination for FTTH.
Features
1. SC/FC/LC type available.
2. Field installable, cost effective, easy to operate.
3. About 2 mins to finish per termination.
4. Patent of precision ceramic U-groove alignment technology, avarage IL<0.2dB,reliable durable and superior optical performance.
5. Factory pre-polished, no electricity required
Application: FTTH
Specification
Item | Parameter |
Insertion Loss | Average≤0.2dB, Max≤0.4dB |
Return Loss UPC | ≥40dB, APC: ≥55dB |
One-time Assembly Rate | ≥97% |
Assembly Repeatability | ≥5 times |
Life time | ≥10 years |
Average Assembly Time | 3 minutes |
Tensile Resistance | ≥30N |
Operation Temperature | -40℃ - 85℃ |
